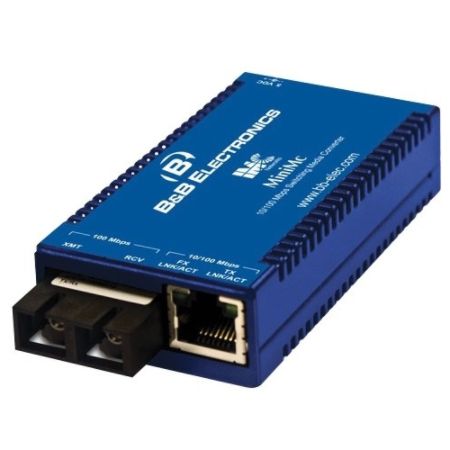

B&B MiniMc, TP-TX/FX-SM1310/PLUS-ST Item # 163683
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
163683
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Media conversion is the most cost-effective solution for extending the productive life of legacy wiring plants and equipment while allowing implementation of new technologies. Media conversion's greatest benefits are flexibility and cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc is the industry's smallest media converter with both data connections on the same side of the unit, and at a fraction of the cost of other alternatives. Plug-and-play operation with a variety of model types and powering options make the MiniMc series easy and convenient to use.
Product Details
| Item # | 163683 |
| Manufacturer # | K45945 |
| Ethernet Technology | Fast Ethernet |
| height | 0.8 in. |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | FCC Class B; UL/cUL; CSA; CE; IEEE 802.3; IEEE 802.3u |
| width | 1.8 in. |
| Product Line | MiniMc |
| depth | 3.4 in. |
| Number of ST Ports | 1 |
| Product Name | Smallest, Most Reliable Switching Media Converter |
| manufacturer | B+B SmartWorx |
| Maximum Distance Supported | 24.85 Mile |
| brand name | B+B |
| USB | No |
| Digital Audio/Video | No |
| Digital Audio | No |
| Input Voltage | 5 V DC |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair; Optical Fiber |
| Total Number of Ports | 2 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Single-mode |
| form factor | Desktop; Rail-mountable; Wall Mountable |
| Network Technology | 10/100Base-TX; 100Base-FX |
| Show More ▾ |
